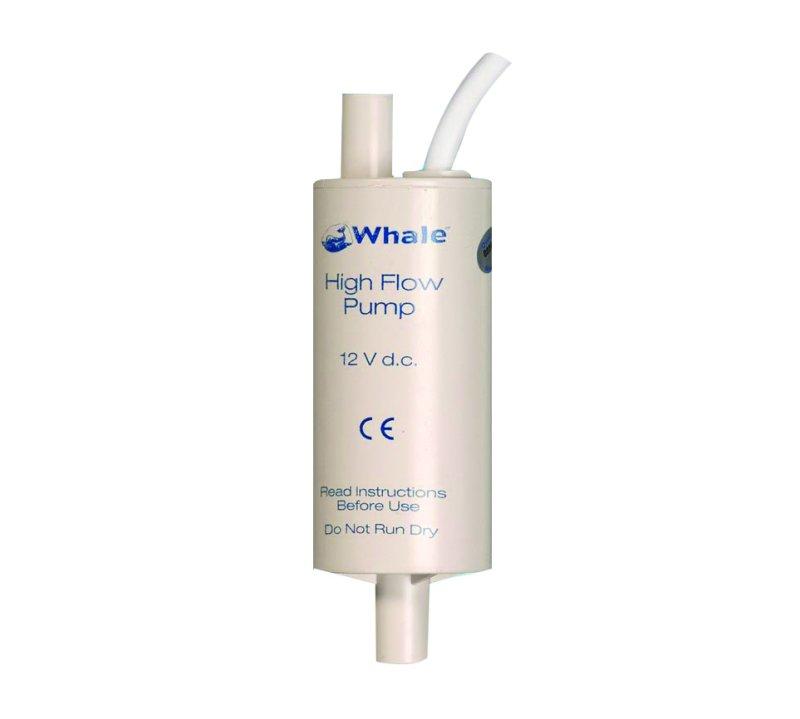

Whale In-Line Pump High Flow 12v DC GP1692
The GP1692 Whale In-Line Pump for use in your caravan or motorhome. This is a high flow pump and will boost pressure in a manual or electric pump
PERFORMANCE DATA – Flow Rate Per Minute/power
consumption
0 m (0 ft) – 13.4 ltrs (3gal), 6 amps.
1 m (3 ft) – 9.8 ltrs (2.2gal), 4 amps.
NOTE – The pumps performance may vary depending on the plumbing system and restrictions on outlets in your motorhome or caravan
FEATURES
Simple, compact and low-cost pump
Low power consumption and very quiet
Ideal for two or three outlets
Fits unsupported into pipework neatly
Operates with a microswitched tap, pressure switch or with a separate switch
Designed for use inline above a submersible electric pump and a manual foot pump
SPECIFICATION
VOLTAGE – 12 Volt DC
WEIGHT – 200g (7oz)
FUSE – 8 amp Automotive
MATERIALS – Pump Body: ABS, Seal: Nitrile, Impeller: Stainless Steel / PBT
CONNECTORS – Flexible hose – Suitable for 10mm (3/8) or 13mm (1/2″) bore hose. Connectors to 15mm quick connections – WX1511 adaptor and then WX1504.”
