Description

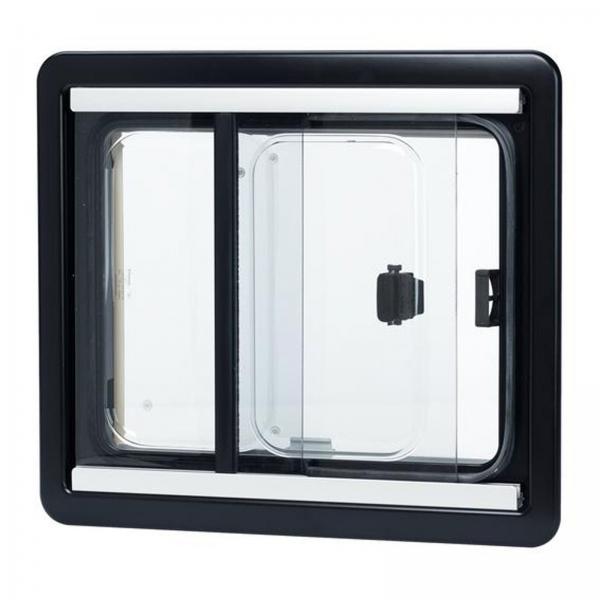

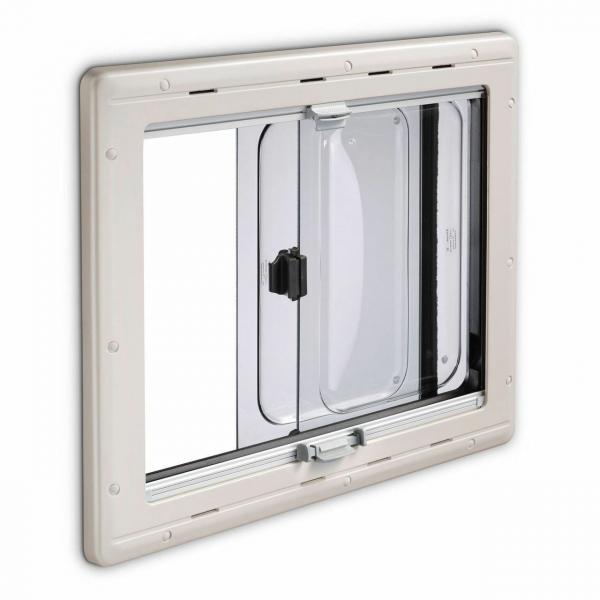

Dometic Seitz S4 W750 x H600 Sliding Window – SE9104100163
SEITZ S4 SLIDING WINDOW SYSTEM
S4 is supplied as a complete kit of window and integrated Blind flyscreen system, all in one box.
The Seitz S4 is the window of choice by many motorhome and camper manufacturers throughout Europe.
Easy installation and long life span are guaranteed: Outer and inner frame are simply screwed together from inside, clamping the window to the vehicle wall, for a lasting and continuous seal.
Highly versatile: for wall thicknesses of 26-41 mm (fitted by shortening the inner frame)
Blind material is white to the interior with a thermally reflective silver aluminised coating to the outside.
Fly net is white with no pattern.
S4 Sliding window is installed with the fixed half pane to the rear of the aperture (based on driving>
Available as Left or Right hand side of vehicle version.
SIZE QUOTED IS THE APPROXIMATE CUT OUT SIZE. DO NOT CUT HOLES UNTIL YOU HAVE YOUR WINDOWS.
Features:

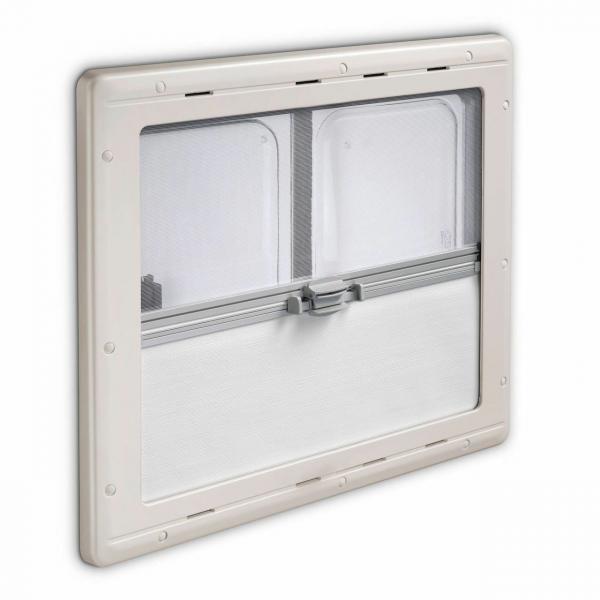

Fly screen and darkening roller blinds can be clipped together and simultaneously adjusted with just one hand
High degree of insulation: darkening roller blinds with aluminium coating
Quick and easy installation
Robust quality with double acrylic glazing
Highly versatile: for wall thicknesses of 26-41 mm (fitted by shortening the inner frame) Dimensions product> Dimensions product> Net weight 8.20 kg
Dimensions ordered> Dimensions ordered> Standard mount. material thickness 1 min 26 mm
Standard mount. material thickness 1 max 26 mm
Possible material thickness 1 min 27 mm
Possible material thickness 1 max 41 mm
Cut out> Cut out
