Description

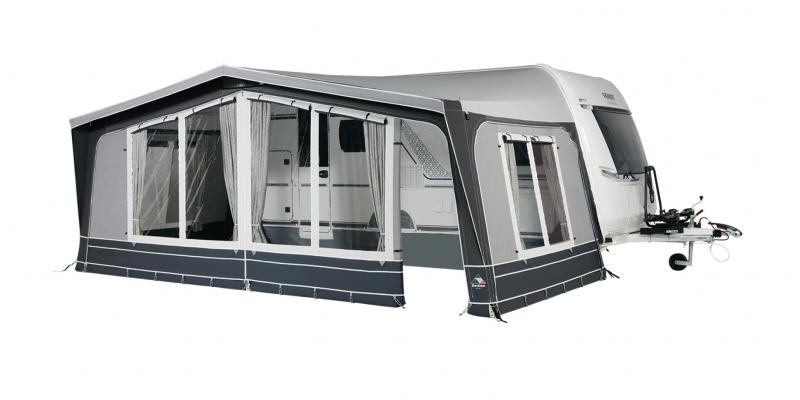

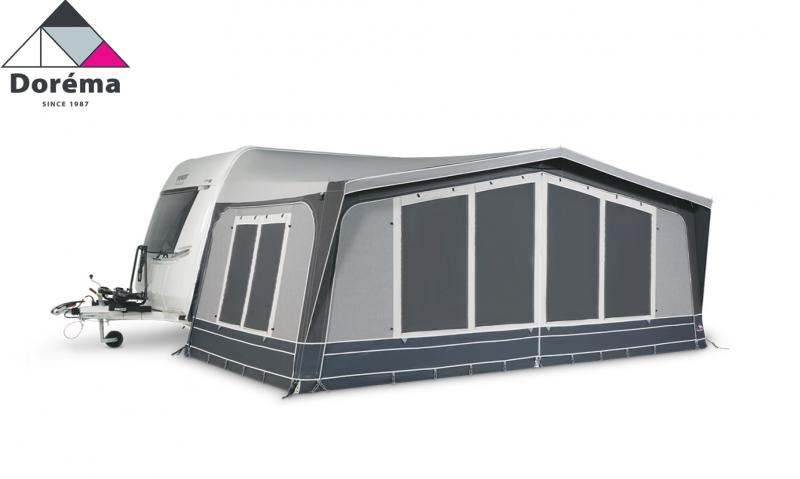

Dorema Diamond XL300 Deluxe Seasonal Awning 28mm Steel Frame
Diamond XL 300 Deluxe Sparkling from all angles

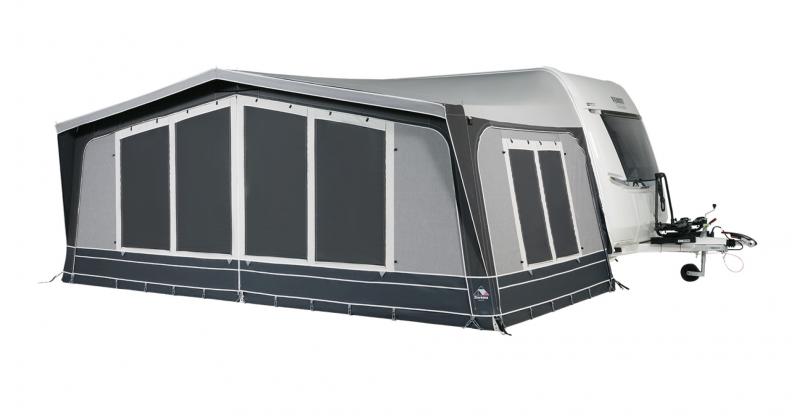

Privacy Blinds : External zipped privacy blinds fitted to De Luxe model only
Acrylic 260 gm2
Removable Velcro Mudwall
Printed pattern design on the inside of the roof
Both touring and seasonal use
Modern design with large windows
Canopy poles as standard
Specifications
Depth : 300 cm (3m )
Colour : Charcoal/Grey
Available sizes: 775 – 1200 cm
Frame: 28 mm EasyGrip steel frame, Includes Canopy Poles
2 extra roof support poles in size 10-19,
2 extra front legs in size 15-19
Privacy Blinds : External zipped privacy blinds fitted to De Luxe model only
Weight: Size 7 : 37 kg (Canvas & Frame) approx
Roof material: TenCate AllSeason coated polyester, printed pattern design on inside
Wall material : Sattler Acrylic 260 gm2, super soft finish
Front panels : Both panels are fitted with a door and can be rolled down or zipped out. OPTI RT25 Zip
Side panels: Both panels are fitted with a door and can be rolled down or zipped out. Part fly screen fitted to both side panels. Fitted with extra strong YKK zippers (10mm)
Ventilation:
A ventilation opening in the ridge of the front panel
On both side panels you will find a fly screen panel
Features
Fitted with Quick Lock profile
Fitted with Safe Lock System
Fitted with beading for Locarno awning canopy
Optional Extras
Diamond Seasonal awning canopy
Deluxe Annex tall with pointed roof & Rear Door
Inner tent annex
Verandah pole
Roof Support Poles
Stormpoles for extra stability
Safe Lock System kit
Starlon carpet
Dorema Awning Size Chart
| Size (cm) | 750-775 | 775-800 | 800-825 | 825-850 | 850-875 |
| Awning Size | 5 | 6 | 7 | 8 | 9 |
| Size (cm) | 875-900 | 900-925 | 925-950 | 950-975 | 975-1000 |
| Awning Size | 10 | 11 | 12 | 13 | 14 |
| Size (cm) | 1000-1025 | 1025-1050 | 1050-1075 | 1075-1100 | 1100-1025 |
| Awning Size | 15 | 16 | 17 | 18 | 19 |
Need help finding the correct size Awning ?
Is this Awning Suitable For Your Caravanning Holiday?
Need Advise, We are here to Help ?
Contact us with the year of your van, make, and model, and we will check our database for you for the correct size Awning
Please note
when buying an awning please check your van for the correct size by
measuring from the ground up to the awning channel follow around and
back down to the ground again for the correct size or email or ring us
and we can check our database for the correct size required
please also note if you order the incorrect size we will NOT be able to
accept back if this has been out of the box or has been through the rail
and tried on the van if we were to accept back we would have the right to deduct
40% of the retail price for repacking and for the awning to be resold
as used as we wont be legally allowed to resell this as new.
