Description

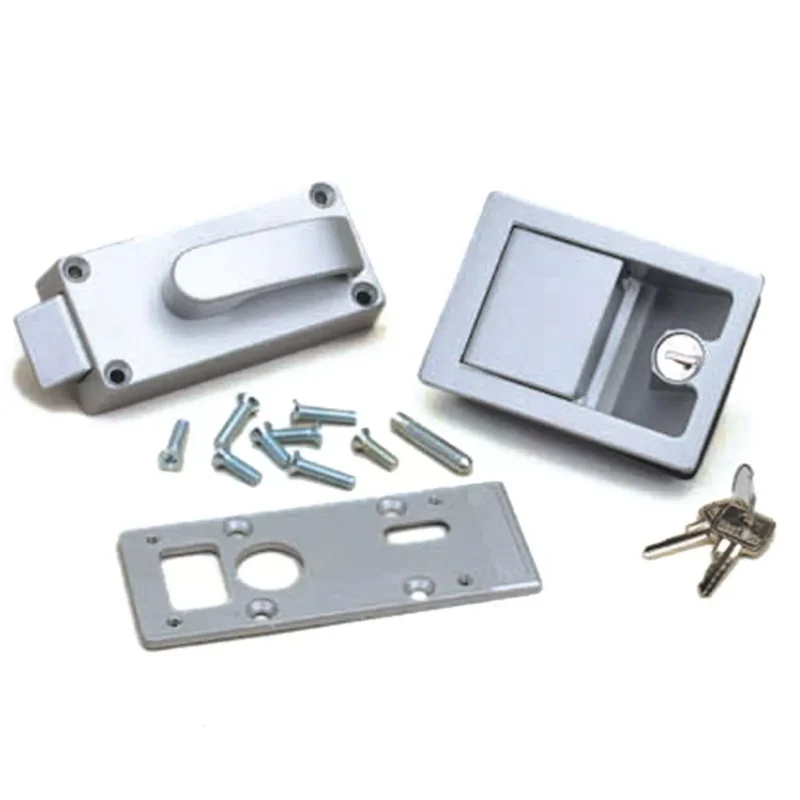

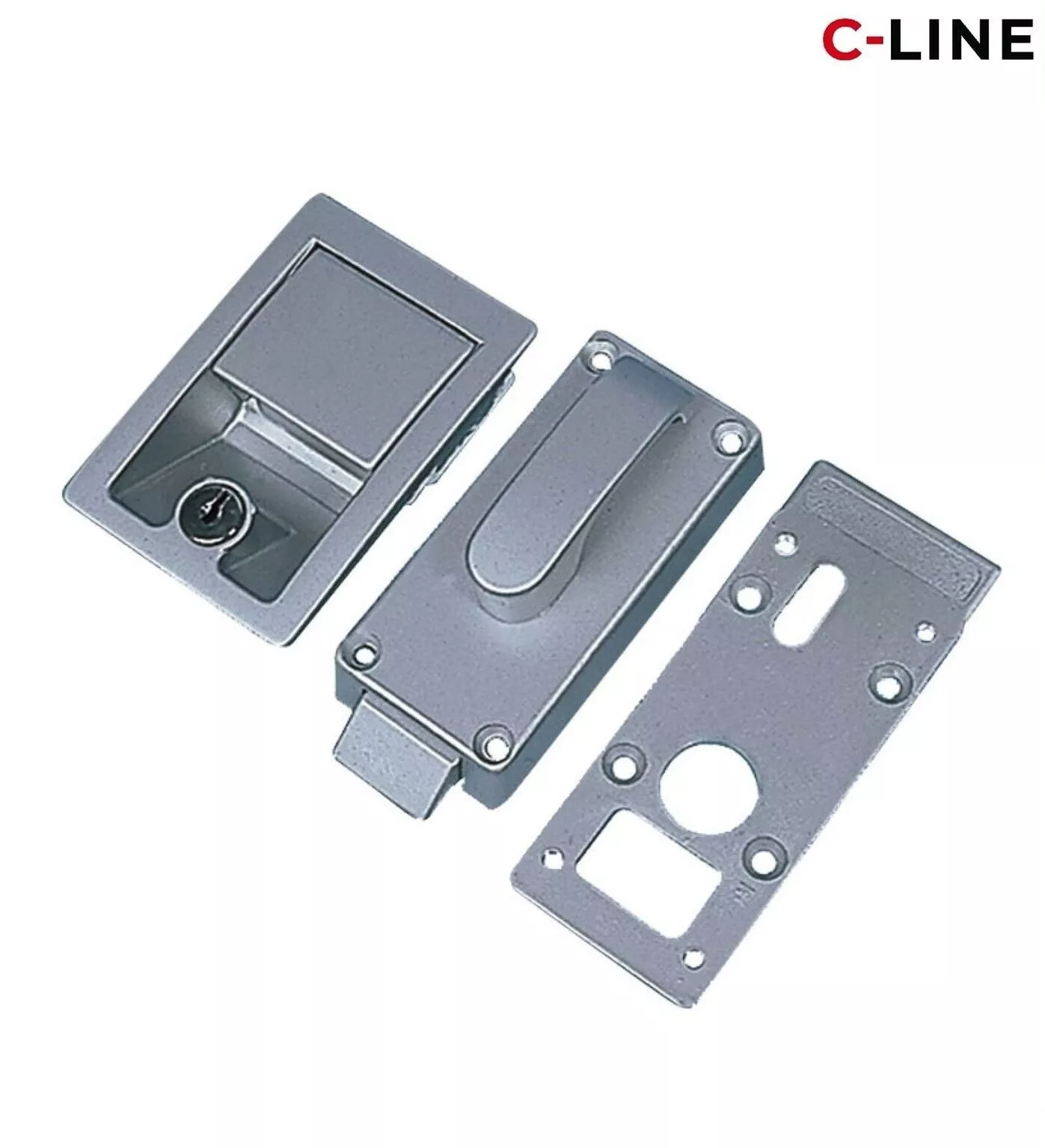

Caraloc 700 Right Hand Caravan Door Assembly Complete PO373
The complete 700 caraloc, right hand can be adapted to suit any door thickness from 22mm to 50mm,
The caraloc 700 exterior (see below) is 100mm long, 70mm wide and 5mm high from the door face and it is manufactured in zinc base alloy.
The interior assembly is 110.5mm long, 51.6mm wide and 19mm high, 40 mm high including the handle.
The latch in the assembly being 28.5mm wide and 11mm high.
How to>Stand outside your caravan and face the door
Look at the hinges on the door
If the hinges are on the right, then you need a right hand lock!
If the hinges are on your left, you need a left hand lock!.
