BCA Coachman Caravan Transformer Battery Charger Dual Output 3 Stage 20amp PO123

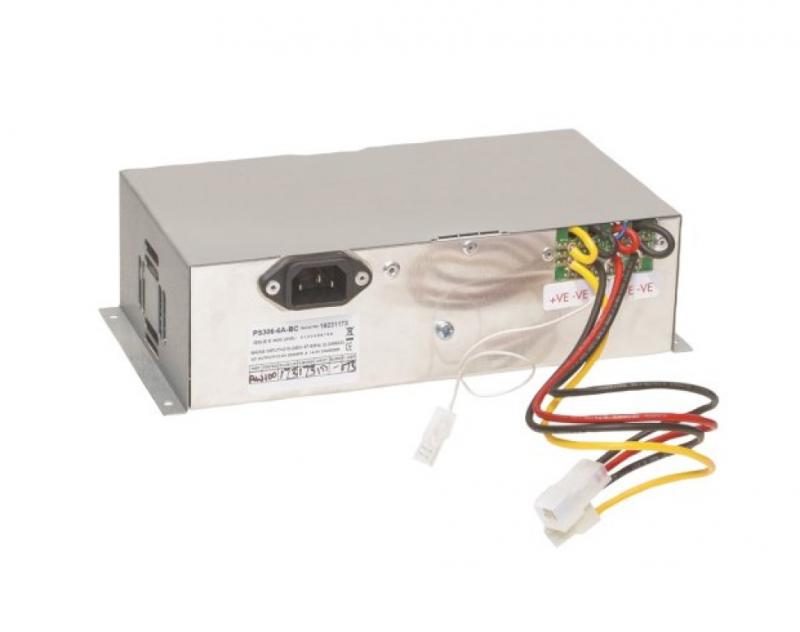

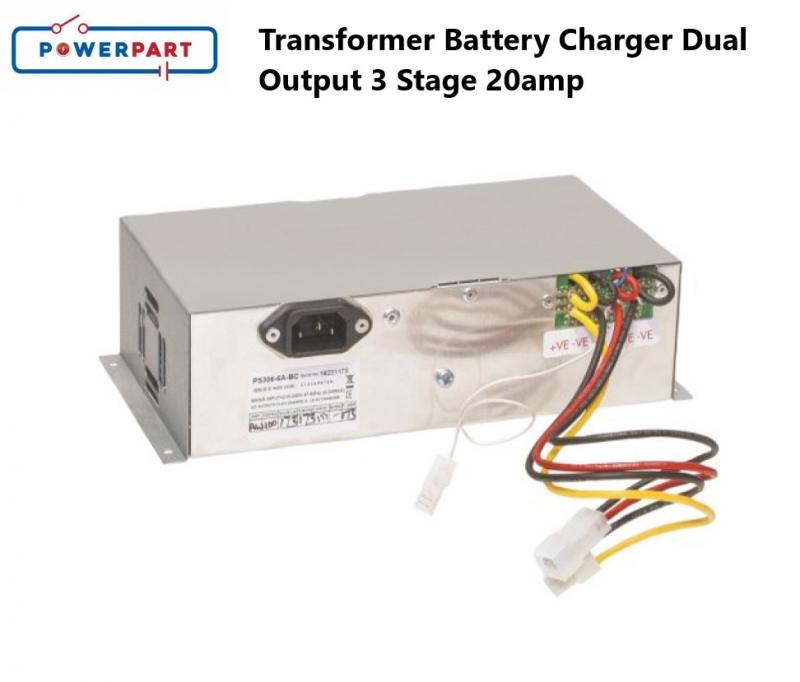

BCA Transformer Battery Charger Dual Output 3 Stage 20amp MPU2
Fits within the grey power distribution unit
Used on modern (2008-2015) Coachman Pastiche, VIP and Laser caravans
Has 2 black and 1 yellow and 1 red connecting wires into two plugs
There is now an extra white lead that is only used on 2015 Elddis and Bailey motorhomes – if you are replacing a transformer unit this lead can just be tucked out of the way and does not need to be connected to anything
Mains input is via a kettle plug connector
Power supply type 2014, 230V A.C. 50Hz. PS301-8A-BC
Dimensions 125mm by 230mm by 70mm
Weight 1.4Kg
Must be fitted by a competent person
MPU2.
